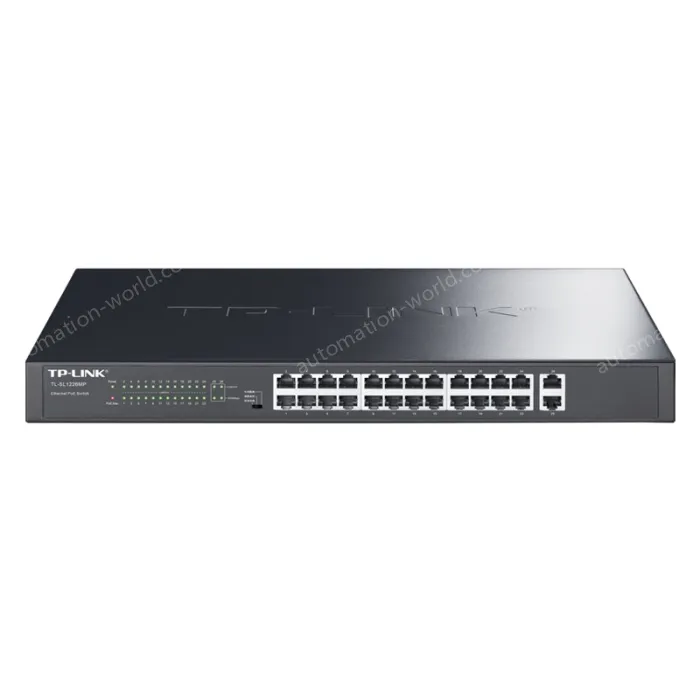

TL-SL1226MP is a gigabit uplink unmanaged PoE switch independently developed by TP-LINK, with 24 100 Gigabit ports supporting PoE+ power supply, in line with IEEE 802.3af/at standard, with a single-port PoE power of up to 30W and a maximum PoE output power of 180W. TL-SL1226MP supports three working modes: standard switching, video surveillance, and VLAN isolation, adapting to various complex environments. As a PoE power supply device, it can automatically detect and identify the powered device that meets the standard and supply it with network cables. Plug-and-play, no configuration required, simple and convenient to use, meet the needs of high-density PoE power supply network environment, suitable for hotels, campuses, factory dormitories, small and medium-sized enterprises to build a cost-effective network.

• 24 x 10/100Base-T RJ45 ports support PoE+ power supply
• 2 x 10/100/1000Base-T RJ45 ports
• The maximum PoE power supply power of the whole machine is 180W, and the maximum PoE power supply power of a single port is 30W
• PoE power delivery ports support the priority mechanism
• It supports three working modes: standard switching, video surveillance, and VLAN isolation

100 Gigabit access, Gigabit uplink

• Provides 24 x 10/100Base-T RJ45 ports, 2 x Gigabit RJ45 ports.
• All ports support non-blocking wire-speed forwarding for smoother transmission.
• Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control.

PoE power supply function

• The 24 10/100Base-T RJ45 ports support PoE+ power supply to meet the needs of PoE power supply in scenarios such as visual security, teleconferencing systems, and wireless coverage.
• In line with the IEEE 802.3af/at PoE power supply standard, the maximum PoE output power of the whole machine is 180W, and the maximum PoE output power of a single port is 30W.
• Automatically identify PoE devices for power supply without damaging non-PoE devices.
• PoE ports support a priority mechanism to ensure the power supply of high-priority ports when the remaining power is insufficient, so as to prevent devices from overloading.

Three modes of operation

• The standard switching mode ---- all ports communicate freely, which is suitable for common data transmission environment;
• The video surveillance mode ---- specially designed for surveillance application scenarios to improve the stuttering and mosaic phenomenon in the surveillance network.
• In VLAN isolation mode--- 24 Gigabit ports are isolated from each other, which is suitable for scenarios where wireless APs are connected, suppressing network storms, and improving network performance.

The equipment is stable and reliable

• The low-power design of the host and the fan strengthen the heat dissipation to ensure the stable operation of the product.
• It adopts TP-LINK's self-developed power supply and high redundancy design to provide long-term and stable PoE power output.

It's easy to use

• Plug and play, no configuration required, simple and convenient.
• Users can easily understand the operating status of the device through the power indicator, port status indicator (Link/Act), and rate indicator (1000Mbps).
