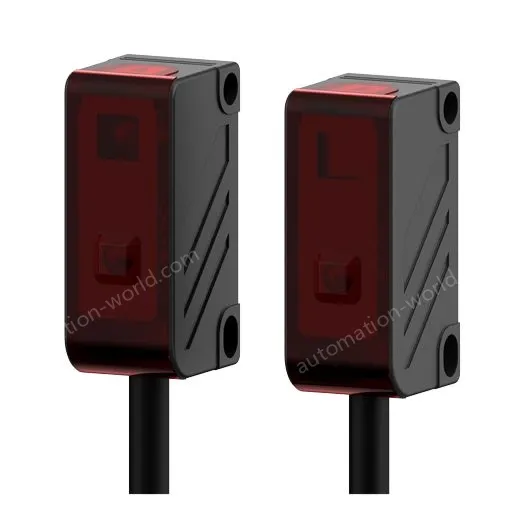

BYS500-TDT1,2
The BY series compact through-beam type photoelectric sensors offer highly reliable sensing performance with a synchronized emitter and receiver system and high-speed response time under 1 ms. The sensors are available in standard types and side sensing types for installation flexibility.
BYS500-TDT1,2
Sensing type Through-beam type(side sensing type)
Sensing distance 500mm
Sensing target Opaque material of min. Ø5mm
Response time Max. 1ms
Light source Infrared LED(940nm)
Operation mode Dark ON
Weight ≈ 150 g (≈ 200 g)
Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption Emitter/Receiver: Max. 30mA
Control output NPN open collector
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -10 to 60℃, storage: -25 to 70℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Protection structure IP50
Connection type Cable type(Ø4, 2m)
Material Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM
Sensing distance 500mm
Sensing target Opaque material of min. Ø5mm
Response time Max. 1ms
Light source Infrared LED(940nm)
Operation mode Dark ON
Weight ≈ 150 g (≈ 200 g)
Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption Emitter/Receiver: Max. 30mA
Control output NPN open collector
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -10 to 60℃, storage: -25 to 70℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Protection structure IP50
Connection type Cable type(Ø4, 2m)
Material Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM
