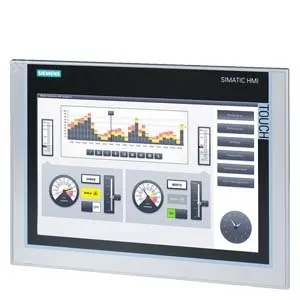

      6AV2124-0MC01-0AX0 SIMATIC HMI TP1200 COMFORT
      Artikelnummer6AV2124-0MC01-0AX0
      SIMATIC HMI TP1200 COMFORT, COMFORT PANEL, TOUCH OPERATION, 12" WIDESCREEN-TFT-DISPLAY, 16 MIL. COLORS, PROFINET INTERFACE, MPI/PROFIBUS DP INTERFACE, 12 MB USER MEMORY, WINDOWS CE 6.0, CONFIGURABLE FROM WINCC COMFORT V11
      Product type designation
      Display
      Design of displayTFT
      Screen diagonal12.1 in
      Display width261.1 mm
      Display height163.2 mm
      Number of colors16 777 216
      Resolution (pixels)
      ● Horizontal image resolution1 280
      ● Vertical image resolution800
      Backlighting
      ● MTBF backlighting (at 25 °C)80 000 h
      ● Dimmable backlightYes; 0-100 %
      Control elements
      Keyboard
      ● Number of function keys0
      ● Keys with LEDNo
      ● System keysNo
      ● Numeric/alphabetical input
      — Numeric keyboardYes; Onscreen keyboard
      — Alphanumeric keyboardYes; Onscreen keyboard
      Touch operation
      ● Design as touch screenYes
      Expansions for operator control of the process
      ● DP direct LEDs (LEDs as S7 output I/O)
      — F1...Fx0
      ● Direct keys (keys as S7 input I/O)
      — F1...Fx0
      ● Direct keys (touch buttons as S7 input I/O)40
      Installation type/mounting
      Mounting in portrait format possibleYes
      Mounting in landscape format possibleYes
      Supply voltage
      Type of supply voltageDC
      Rated value (DC)24 V
      permissible range, lower limit (DC)19.2 V
      permissible range, upper limit (DC)28.8 V
      Input current
      Current consumption (rated value)0.85 A
      Inrush current A²s0.5 A²·s
      Power
      Power consumption, typ.20 W
      Memory
      FlashYes
      RAMYes
      Usable memory for user data12 Mbyte
      Type of output
      Info LEDNo
      Power LEDNo
      Error LEDNo
      Acoustics
      ● BuzzerNo
      ● SpeakerYes
      Time of day
      Clock
      ● Hardware clock (real-time clock)Yes
      ● Software clockNo
      ● Battery-backedYes; Back-up duration typically 6 weeks
      ● SynchronizableYes
      Interfaces
      Number of RS 485 interfaces1; RS 422/485 combined
      Number of USB interfaces2; USB 2.0
      Number of USB Mini B interfaces1; 5-pole
      Number of SD card slots2
      Number of parallel interfaces0
      Number of 20 mA interfaces (TTY)0
      Number of RS 232 interfaces0
      Number of RS 422 interfaces1
      Number of other interfaces0
      With software interfacesNo
      Industrial Ethernet
      ● Number of industrial Ethernet interfaces2
      ● Industrial Ethernet status LED2
      ● Number of ports of the integrated switch2
      Protocols
      PROFINETYes
      PROFINET IOYes
      IRT supportedYes; As of WinCC V12
      MRP supportedYes; As of WinCC V12
      PROFIBUSYes
      MPIYes
      Protocols (Ethernet)
      ● TCP/IPYes
      ● DHCPYes
      ● SNMPYes
      ● DCPYes
      ● LLDPYes
      WEB characteristics
      ● HTTPYes
      ● HTTPSNo
      ● HTMLYes
      ● XMLNo
      ● CSSYes
      ● Active XNo
      ● JavaScriptYes
      ● Java VMNo
      Further protocols
      ● CANNo
      ● MODBUSYes
      ● Supports protocol for EtherNet/IPYes
      EMC
      Emission of radio interference acc. to EN 55 011
      ● Limit class A, for use in industrial areasYes
      ● Limit class B, for use in residential areasNo
      Degree and class of protection
      IP (at the front)IP65
      Enclosure Type 4 at the frontYes
      Enclosure type 4x at the frontYes
      IP (rear)IP20
      Standards, approvals, certificates
      CE markYes
      KC approvalYes
      cULusYes
      RCM (formerly C-TICK)Yes
      Marine approval
      ● Germanischer Lloyd (GL)Yes; As of product version: 10
      ● American Bureau of Shipping (ABS)Yes; As of product version: 10
      ● Bureau Veritas (BV)Yes; As of product version: 10
      ● Det Norske Veritas (DNV)Yes; As of product version: 10
      ● Lloyds Register of Shipping (LRS)Yes; As of product version: 10
      ● Nippon Kaiji Kyokai (Class NK)Yes; As of product version: 10
      ● Polski Rejestr Statkow (PRS)No
      Use in hazardous areas
      ● ATEX Zone 2Yes
      ● ATEX Zone 22Yes
      ● IECEx Zone 2Yes
      ● IECEx Zone 22Yes
      ● cULus Class I Zone 1No
      ● cULus Class I Zone 2, Division 2Yes
      ● FM Class I Division 2Yes
      Ambient conditions
      Mounting positionvertical
      maximum permissible angle of inclination without external ventilation35°
      Operating temperature
      ● Operation (vertical installation)
      — in vertical mounting position, minimum0 °C
      — in vertical mounting position, maximum50 °C; (55 °C, see entry ID:64847814)
      ● Operation (max. tilt angle)
      — at maximum tilt angle, minimum0 °C
      — at maximum tilt angle, maximum40 °C
      ● Operation (vertical installation, portrait format)
      — in vertical mounting position, minimum0 °C
      — in vertical mounting position, maximum40 °C
      ● Operation (max. tilt angle, portrait format)
      — at maximum tilt angle, minimum0 °C
      — at maximum tilt angle, maximum35 °C
      Storage/transport temperature
      ● Min.-20 °C
      ● max.60 °C
      Relative humidity
      ● Operation, max.90 %
      Operating systems
      proprietaryNo
      Executable with configuration operating system
      ● otherNo
      Configuration
      Message indicatorYes
      With alarm logging system (incl. buffer and acknowledgment)Yes
      Process value display (output)Yes
      Process value default (input) possibleYes
      Recipe administrationYes
      Configuration software
      ● STEP 7 Basic (TIA Portal)No
      ● STEP 7 Professional (TIA Portal)No
      ● WinCC flexible CompactNo
      ● WinCC flexible StandardNo
      ● WinCC flexible AdvancedNo
      ● WinCC Basic (TIA Portal)No
      ● WinCC Comfort (TIA Portal)Yes; from V11
      ● WinCC Advanced (TIA Portal)Yes; from V11
      ● WinCC Professional (TIA Portal)Yes; from V11
      Languages
      Online languages
      ● Number of online/runtime languages32
      Languages
      ● Languages per project32
      ● Languages
      — DYes
      — GBYes
      — FYes
      — IYes
      — EYes
      — Chinese traditionalYes
      — Chinese simplifiedYes
      — DKYes
      — FINYes
      — GRYes
      — JYes
      — KP / ROKYes
      — NLYes
      — NYes
      — PLYes
      — PYes
      — RUSYes
      — SYes
      — CZYes
      — SKYes
      — TRYes
      — HYes
      Functionality under WinCC (TIA Portal)
      LibrariesYes
      Applications/options
      ● Internet ExplorerYes
      ● Pocket WordYes
      ● Pocket ExcelYes
      ● PDF ViewerYes
      ● Media PlayerYes
      ● SIMATIC WinCC Sm@rtServerYes
      ● SIMATIC WinCC AuditYes
      Number of Visual Basic ScriptsYes
      Task planner
      ● time-controlledYes
      ● task-controlledYes
      Help system
      ● Number of characters per info text70
      Message system
      ● Number of alarm classes32
      ● Number of bit messages4 000
      ● Number of analog messages200
      ● S7 alarm number procedureYes
      ● System messages HMIYes
      ● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.)Yes
      ● Number of characters per message80
      ● Number of process values per message8
      ● Acknowledgment groupsYes
      ● Message indicatorYes
      ● Message buffer
      — Number of entries1 024
      — Circulating bufferYes
      — retentiveYes
      — maintenance-freeYes
      Recipe administration
      ● Number of recipes300
      ● Data records per recipe500
      ● Entries per data record1 000
      ● Size of internal recipe memory2 Mbyte
      ● Recipe memory expandableYes
      Variables
      ● Number of variables per device2 048
      ● Number of variables per screen400
      ● Limit valuesYes
      ● MultiplexingYes
      ● StructsYes
      ● ArraysYes
      Images
      ● Number of configurable images500
      ● Permanent window/defaultYes
      ● Global imageYes
      ● Start screen configurableYes
      ● Image selection by PLCYes
      ● Image number in the PLCYes
      Image objects
      ● Number of objects per image400
      ● Text fieldsYes
      ● I/O fieldsYes
      ● Graphic I/O fields (graphics list)Yes
      ● Symbolic I/O fields (text list)Yes
      ● Date/time fieldsYes
      ● SwitchesYes
      ● ButtonsYes
      ● Graphic viewYes
      ● IconsYes
      ● Geometric objectsYes
      Complex image objects
      ● Number of complex objects per screen20
      ● Alarm viewYes
      ● Trend viewYes
      ● User viewYes
      ● Status/controlYes
      ● Sm@rtClient viewYes
      ● Recipe viewYes
      ● f(x) trend viewYes
      ● System diagnostics viewYes
      ● Media PlayerYes
      ● Bar graphsYes
      ● SlidersYes
      ● Pointer instrumentsYes
      ● Analog/digital clockYes
      Lists
      ● Number of text lists per project500
      ● Number of entries per text list500
      ● Number of graphics lists per project500
      ● Number of entries per graphics list500
      Archiving
      ● Number of archives per device50
      ● Number of entries per archive20 000
      ● Message archiveYes
      ● Process value archiveYes
      ● Archiving methods
      — Sequential archiveYes
      — Short-term archiveYes
      ● Memory location
      — Memory cardYes
      — USB memoryYes
      — EthernetYes
      ● Data storage format
      — CSVYes
      — TXTYes
      — RDBYes
      Security
      ● Number of user groups50
      ● Number of user rights32
      ● Number of users50
      ● Password export/importYes
      ● SIMATIC LogonYes
      Logging through printer
      ● AlarmsYes
      ● Report (shift log)Yes
      ● HardcopyYes
      ● Electronic print to fileYes; pdf, html
      Character sets
      ● Keyboard
      — US American (English)Yes
      ● Character sets
      — TahomaYes
      — ArialYes
      — Courier NewYes
      — WinCC flexible StandardYes
      — Ideographic languagesYes
      ● Font size freely scalableYes
      ● Additional character sets can be loadedYes
      Transfer (upload/download)
      ● MPI/PROFIBUS DPYes
      ● USBYes
      ● EthernetYes
      ● using external storage mediumNo
      Process coupling
      ● S7-1200Yes
      ● S7-1500Yes
      ● S7-200Yes
      ● S7-300/400Yes
      ● LOGO!Yes
      ● Win ACYes
      ● SINUMERIKYes; with SINUMERIK option package
      ● SIMOTIONNo; With WinCC, subsequent version
      ● Allen Bradley (EtherNet/IP)Yes
      ● Allen Bradley (DF1)Yes
      ● Mitsubishi (MC TCP/IP)Yes
      ● Mitsubishi (FX)Yes
      ● OMRON (FINS TCP)No
      ● OMRON (LINK/Multilink)Yes
      ● Modicon (Modbus TCP/IP)Yes
      ● Modicon (Modbus)Yes
      ● OPC UA ClientYes
      ● OPC UA ServerYes
      Service tools/configuration aids
      ● Clean screenYes
      ● Touch calibrationYes
      ● Backup/restoreYes
      ● Backup/Restore automaticallyYes
      ● SimulationYes
      ● Device switchoverYes
      ● Delta transferYes
      I/O / Options
      I/O devices
      ● PrinterYes
      ● MultiMediaCardYes
      ● SD cardYes
      ● USB memoryYes
      ● Network cameraYes
      Mechanics/material
      Type of housing (front)
      ● plasticNo
      ● aluminumYes
      ● Stainless steelNo
      Dimensions
      Width of the housing front330 mm
      Height of housing front241 mm
      Mounting cutout/device depth (W x H x T)
      ● Mounting cutout, width310 mm
      ● Mounting cutout, height221 mm
      Device depth65 mm
      Weights
      Without packaging2.8 kg
      With packaging3.5 kg
      last modified:13.10.2014
      ">
      6AV2124-0MC01-0AX0
      ProductArticle Number (Market Facing Number)6AV2124-0MC01-0AX0Product Description SIMATIC HMI TP1200 Comfort, Comfort Panel, touch operation, 12\" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11Product familyComfort Panels standard devicesProduct Lifecycle (PLM)PM300:Active ProductPrice dataRegion Specific PriceGroup / Headquarter Price Group239 / 239List Price Show pricesCustomer Price Show pricesSurcharge for Raw MaterialsNoneMetal FactorNoneDelivery informationExport Control RegulationsAL : N / ECCN : 9N9999Estimated dispatch time1 Day/DaysNet Weight (kg)3,463 KgPackaging Dimension36,20 x 50,90 x 12,60Package size unit of measureCMQuantity Unit1 PiecePackaging Quantity1Additional Product InformationEAN4025515079002UPC040892686050Commodity Code85371098LKZ_FDB/ CatalogIDST80.1NProduct Group3404Group CodeR141Country of originGermanyCompliance with the substance restrictions according to RoHS directiveSince: 31.01.2011Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.WEEE (2012/19/EU) Take-Back ObligationYesREACH Art. 33 Duty to inform according to the current list of candidates
      Reach Information
      There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
      SCIP number43c427dd-eb19-44ab-8e58-208016cd45fcClassifications
      VersionClassification
      eClass1227-33-02-01
      eClass627-24-23-02
      eClass7.127-24-23-02
      eClass827-24-23-02
      eClass927-33-02-01
      eClass9.127-33-02-01
      ETIM7EC001412
      ETIM8EC001412
      ETIM9EC001412
      IDEA46607
      UNSPSC1543-21-15-06
      ">
      6AV2124-0MC01-0AX0
      SIMATIC HMI TP1200 Comfort, Comfort Panel, touch operation, 12\" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11 ">
      6AV2124-0MC01-0AX0
      SIMATIC HMI TP1200 Comfort， Smart panel, touch operation, 12 "wide screen TFT display screen, 16 million colors, PROFINET interface, MPI/PROFIBUS-DP interface, 12MByte project configuration memory, Windows CE 6.0, the minimum version of WinCC Comfort 11 that can be configured for projects">
      6AV2124-0MC01-0AX0
      SIMATIC HMI TP1200 Comfort， Smart panel, touch operation, 12 "wide screen TFT display screen, 16 million colors, PROFINET interface, MPI/PROFIBUS-DP interface, 12MByte project configuration memory, Windows CE 6.0, the minimum version of WinCC Comfort 11 that can be configured for projects">
      6AV2124-0MC01-0AX0
      SIMATIC HMI TP1200 Comfort， Smart panel, touch operation, 12 "wide screen TFT display screen, 16 million colors, PROFINET interface, MPI/PROFIBUS-DP interface, 12MByte project configuration memory, Windows CE 6.0, the minimum version of WinCC Comfort 11 that can be configured for projects">

      4.9

      ★ ★ ★ ★ ★

      12 views

      5 star 8 (100%)
      4 star 0 (0%)
      3 star 0 (0%)
      2 star 0 (0%)
      1 star 0 (0%)

      Reviews

      All Reviews（8） Image/Video（0） 5 star（8）
      E**a

      ★ ★ ★ ★ ★ 10/10/2024

      The materials used are of high grade

      (880)

      O**a

      ★ ★ ★ ★ ★ 19/09/2024

      The components feel robust and durable

      (968)

      A**a

      ★ ★ ★ ★ ★ 18/08/2024

      The quality of the connections is impressive

      (591)

      S**a

      ★ ★ ★ ★ ★ 12/05/2024

      The longevity of this Siemens model is undeniable

      (846)

      E**n

      ★ ★ ★ ★ ★ 03/05/2024

      The product is well worth the investment

      (760)

      L**m

      ★ ★ ★ ★ ★ 22/03/2024

      The product has stood up to heavy usage

      (971)

      A**r

      ★ ★ ★ ★ ★ 10/01/2024

      The quality of the Siemens 6AV2-124-0MC01-0AX0 model is exceptional

      (892)

      N**h

      ★ ★ ★ ★ ★ 03/01/2024

      The build quality is top-notch

      (610)

      Picks for you
