DC-DC power supply step-down module

Ship to Stock in: Warehouse

DC-DC power supply buck module 24V to 12V 10A

★★★★★4.91344 Reviews

Wholesale Price

Model: SZQXKJ-D8

Order No: SZQXKJ-D8

SKU: 10000146896401

Category: DC-DC power supply buck module

Brand: SZQJXKJ

Size: 40.00mm, 20.00mm, 12.00mm,0.00cm

Weight: 15.00g

Product Selection Engineer: Hejiahui

Leading

Customer Service Guarantee

100% secure payment

Quality Guarantee

No Reason Returns

You May Also Like

Selling List

Description Reviews

SZQXKJ-D8

DC-DC DC power supply step-down module This product is a high-current and high-power step-down module, with an output of up to 10A The output voltage parameter is adjustable.

Monolithic synchronous step-down DC/DC adapter with jitter frequency-averaged current-mode control architecture. Capable of driving 5-10A continuous loads, with good line and load regulation capabilities. The voltage is 7-38V working, and the output voltage is adjustable from 1V to 25V.

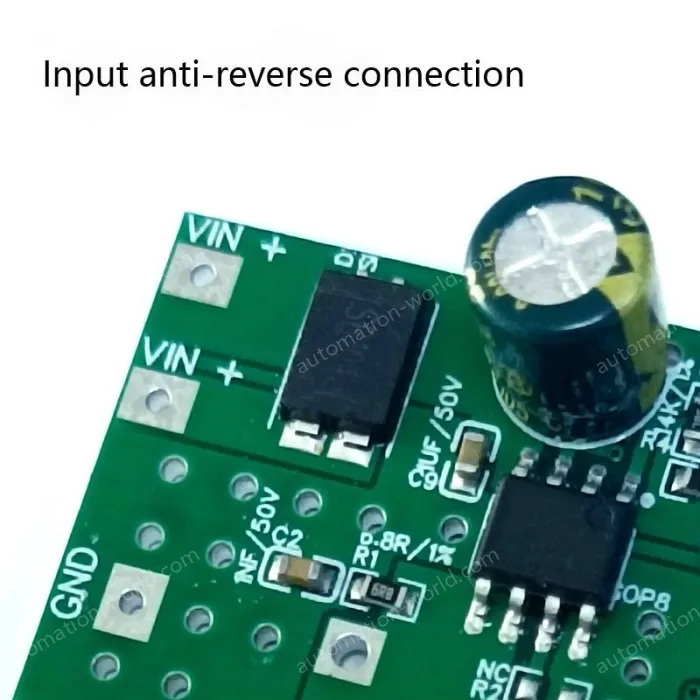

There are short circuit and thermal protection circuits to improve the reliability of the system. Internal soft-start to avoid input inrush current at startup Wide VIN range: 7-38V

The output current can reach 10A 96% efficiency CC/CV mode control Built-in adjustable line compensation adjustable output voltage 2% output voltage accuracy 6% current limit accuracy Programmable Frequency (130kHz - 300kHz) Burst mode operates with light load internal loop compensation Internal soft-start.
