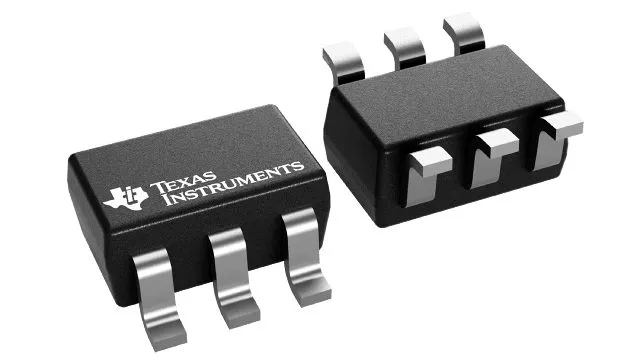

12-bit, single-channel, ultra-low power DAC in 6-pin SC70 package for battery powered applications
The DAC5311 (8-bit), DAC6311 (10-bit), and DAC7311 (12-bit) devices are low-power, single-channel, voltage output digital-to-analog converters (DACs). The low power consumption of these devices in normal operation (0.55 mW at 5 V, reducing to 2.5 µW in power-down mode) makes it ideally suited for portable, battery-operated applications.
Features for the DAC7311
- Relative accuracy:
- 0.25 LSB INL (DAC5311: 8-bit)
- 0.5 LSB INL (DAC6311: 10-bit)
- 1 LSB INL (DAC7311: 12-bit)
- microPower operation: 80 µA at 2.0 V
- Power-down: 0.5 µA at 5 V, 0.1 µA at 2.0 V
- Wide power supply: 2.0 V to 5.5 V
- Power-on reset to zero scale
- Straight binary data format
- Low power serial interface with Schmitt-triggered inputs: up to 50 MHz
- On-chip output buffer amplifier, rail-to-rail operation
- SYNC interrupt facility
- Extended temperature range –40°C to +125°C
- Pin-compatible family in a tiny, 6-pin SC70 package
