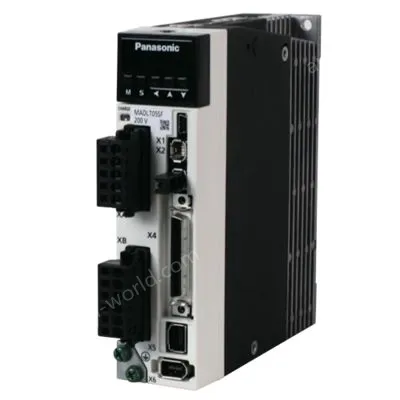

MCDLT35SF
| Part Number | MCDLT35SF |
| Product | Servo Driver |
| Details | A6SF series Multifunction type (Pulse analog full-closed) with the safety function |
| Product name | MINAS A6S Series Servo Driver |
| Features | Swifter, smarter and easier to use Powered Up compact driver |
MCDLT35SF
| Item | Specifications |
| Part Number | MCDLT35SF |
| Details | A6SF series Multifunction type (Pulse analog full-closed) with the safety function |
| Family Name | MINAS A6 |
| Series | A6SF series |
| Type | Multifunction type |
| Frame | C-Frame |
| Frequency response (kHz) | 3.2 |
| Control method | Position control, Velocity control, Torque control, and Full-closed control |
| Safety Function | with |
| Supply voltage | Single/3-phase 200 V |
| I/F Classification of type | Analog /Pulse, Modbus (RS485 /RS232) |
| Dimensions (W) (Unit: mm) | 65 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 170 |
| Mass (kg) | 1.6 |
| Environment | For more details, please refer to the instruction manual. |
