MER3-800-36G3C-P camera,MER3-800-36G3C-P

Ship to Stock in: Warehouse

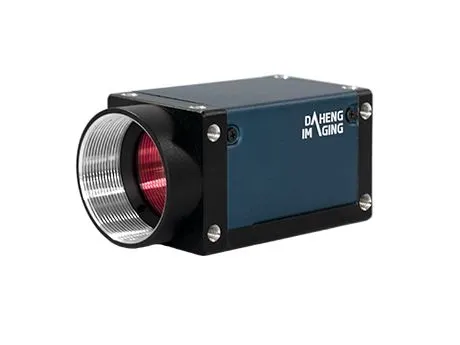

MER3-800-36G3C-P(2840×2840,2.5GigE,Color)

★★★★★4.93143 Reviews

Wholesale Price

Model: MER3-800-36G3C-P

Order No: MER3-800-36G3C-P

SKU: 1720683081857285594

Category: Industrial digital camera

Brand: Daheng

Size: 50.60mm, 29.00mm, 29.00mm,0.00cm

Weight: 69.00g

Product Selection Engineer: Zhangyuchong

Leading

Customer Service Guarantee

100% secure payment

Quality Guarantee

No Reason Returns

You May Also Like

Selling List

Description Reviews

MER3-800-36G3C-P

The MER3-800-36G3C-P camera adopts the Sony Pregius S back-illuminated CMOS sensor with global exposure, which transmits image data through the GigE data interface at a transmission speed of up to 2.5Gbit/s, supports Power over Ethernet, and integrates I/O (GPIO) interface, provides a cable locking device, can work stably in various harsh environments, and the camera is equipped with screw mounting holes on all sides. It can be flexibly installed in different structures, and is a high-reliability industrial digital camera product.

MER3-800-36G3C-P

The sequence control function supports the configuration of multiple sets of function parameters

Two trigger types: Frame Start / Frame Burst Start

Two exposure modes: Standard Exposure Mode / Minimal Exposure Mode

Gamma, pixel sampling, digital shift, black level

Lookup table, parameter group, counter, and timer functions

Burst acquisition and level-controlled exposure functions are supported

Ambient light presets, color conversion, and saturation functions are supported

Remove the parameter range limit, and you can expand the range values of parameters such as exposure, gain, white balance, etc

A 16KB user data area is provided to save algorithm coefficients, parameter configurations, etc

MER3-800-36G3C-P

Model	MER3-506-58G3C-P
Brand	Daheng image
Resolution	2448×2048
Frame rate (fps)	58.60
Sensor manufacturers	Sony
Sensor	1/1.8" IMX547 Global shutter CMOS
Cell size	2.74μm
Pixel depth	8 bit，12 bit
Data interface	2.5gige
Lens mount	C
Spectrum	Colored
Image data format	Bayer RG8，Bayer RG12，RGB8，BGR8，Mono8
Signal-to-noise ratio	39.85 db
Exposure time	Standard: 3μs ~ 20μs, actual step size: 1μs; 21μs ~ 1s, actual step size: 1 line cycle; Minimum: 1 ~ 2.4μs, actual step: 0.1μs
Gain	0db ~ 16db
Binning	Not supported
Pixel sampling	Sensor：1×1，2×2
Mirror flip	Horizontal mirroring, vertical mirroring
I/O interface	1 opto-decoupled isolated input, 2 bidirectional gpios
Rated power	< 5.5 W @ 12V / poe
Power supply requirements	12 ~ 24 VDC or poe
Operating temperature	0°C ~ +50°C
Storage temperature	-20°C ~ +70°C
Operating humidity	10% ~ 80%
Mechanical Dimensions (W×H×L)	29 mm × 29 mm × 50.6 mm
Weight	69 g
Certifications & Standards	CE，rohs，genicam，gige Vision
