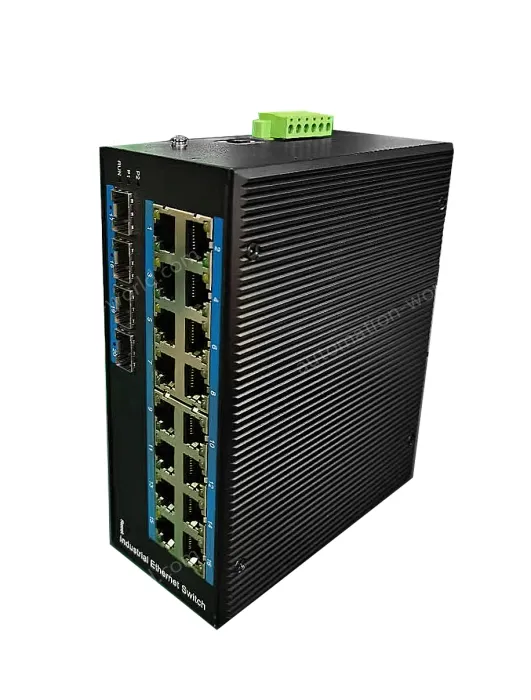

UT-N62416GSP-M-SFP is a managed industrial Ethernet POE switch with FCC, CE, and RoHS compliant products. It supports 4 Gigabit optical ports and 16 Gigabit POE electrical ports; supports Ethernet Layer 2 protocols required by industrial sites to ensure the stability of communication networks; the series switches adopt low power consumption and fanless design to ensure no noise interference, and support -35~70℃ operating temperature and good EMC electromagnetic compatibility performance to ensure stable operation in harsh industrial environments, providing a safe and reliable solution for factory automation, intelligent transportation, video surveillance and other industrial applications to set up fast and stable network terminal access networks. It is a safe and reliable solution for factory automation, intelligent transportation, video surveillance and other industrial applications to build a fast and stable network terminal access network.
- Support IGMP Snooping
- Support Port-based VLAN port, IEEE 802.1Q VLAN, easy network planning
- Support QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase network stability
- Support STP/RSTP/MSTP/ERPS, SNMPv1/v2c/v3 to ensure network security
- Adopt RMON to enhance the prediction capability of network monitor
- Support port speed limit, broadcast storm suppression, multicast storm suppression, unknown unicast storm suppression
- Security management: Support ACL access control list, support 802.1X
- Management function: Support WEB, CLI, SNMP management mode
- Monitoring and maintenance: Interface status monitoring, log management
- Support Bypass function (optional)
- IP40 protection level
Item | UT-N62416GSP-M-SFP |
Product Name | Managed 20-port Industrial Ethernet POE Switch |
Hardware Specification | |
Interface | |
Interface description | 16 RJ45 ports + 4 fiber optic ports |
RJ45 port | 10/100/1000M auto-detection, full/half duplex MDI/MDI-X adaptive |
Fiber optic interface | 1000BaseFX port (SFP slot), Auto-100/1000M |
LED Indicator Light | |
LED indicator light | Power indicator: PWR Interface indicator: electrical port, optical port (Link/ACT) |
Switching Performance | |
Forwarding rate | 42Mpps |
Transmission mode | Store-and-Forward |
MAC address | 8K |
Buffer size | 12Mbit |
Backplane bandwidth | 56G |
Switching latency | <10μs |
Power Requirement | |
Input voltage | DC48-57V (dual power supply redundancy backup) |
Power consumption | <12W |
Access terminal | Phoenix terminal |
| Support dual power redundancy |
| Support built-in overcurrent 4.0A protection |
| Support reverse connection protection |
Operating Environment | |
Operating temperature | -40 ~ 80°C |
Operating humidity | 5 ~ 95% |
Storage temperature | -40 ~ 80°C |
Storage humidity | 5 ~ 95% (no condensing) |
Mechanical Characteristic | |
Housing | IP40 protection level, metal housing |
Dimension | 166*137*68.5mm (W x D x H) |
Weight | 1180g |
Installation method | DIN rail/ wall-mounted |
Ethernet Standard | |
Standard | IEEE802.3-10BaseT, IEEE802.3u-100BaseTX/100Base-FX, IEEE802.3x-Flow Control, IEEE802.3z-1000BaseLX, IEEE802.3ab-1000BaseTX, IEEE802.1ab Logical Link Discovery Protocol, IEEE802.1D-Spanning Tree Protocoll, IEEE802.1w-Rapid Spanning Tree Protocoll, IEEE802.1Q -VLAN Tagging, IEEE802.1p -Class of Service IEEE802.1X-Port Based Network Access Control, IEEE 802.3AF/AT, etc. |
POE Standard | POE port: 1-16 ports support PoE Output Power : Maximum power 15.4W (IEEE 802.3af) Maximum power 30W (IEEE 802.3at) |
Industry Standard | EMI : FCC Part 15 Subpart B Class A, EN 55022 Class A EMC : IEC(EN)61000-4-2(ESD):±8kV contact discharge, ±12kV air discharge IEC(EN)61000-4-3(RS):10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT):Network port : ±2kV CM//±1kV DM ; IEC(EN)61000-4-5(Surge):Network port : ±2kV CM//±1kV DM ; IEC(EN)61000-4-6(RF conduction):3V(10kHz~150kHz),10V(150kHz~80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
