| CPU | j1900 | ||
| i3-4010U、i3-7100U | |||
| i5-4260U、i5-6200U、i5-7200U、i5-8260U、i5-10210U | |||
| i7-7500U、i7-10610U | |||
| RAM | DDR III / DDRIV | ||
| Storage | MSATA | 1*MSATA | |
| SATA | 1*SATA | ||
| Show | HDMI | Support 1920*1200 | |
| USB | Most 4*USB（Aviation interface） | ||
| I/O Interfaces | 1*aviation interface can get 2*USB | ||
| Network Interfaces | Most 2*RJ-45（Aviation interface） | ||
| Serial Port | Most 6*serial port (Aviation interface) 4*RS-232+2*RS-485/422/232 | ||
| GPIO (optional) | Aviation interface | ||
| HDMI (optional) | Aviation interface | ||

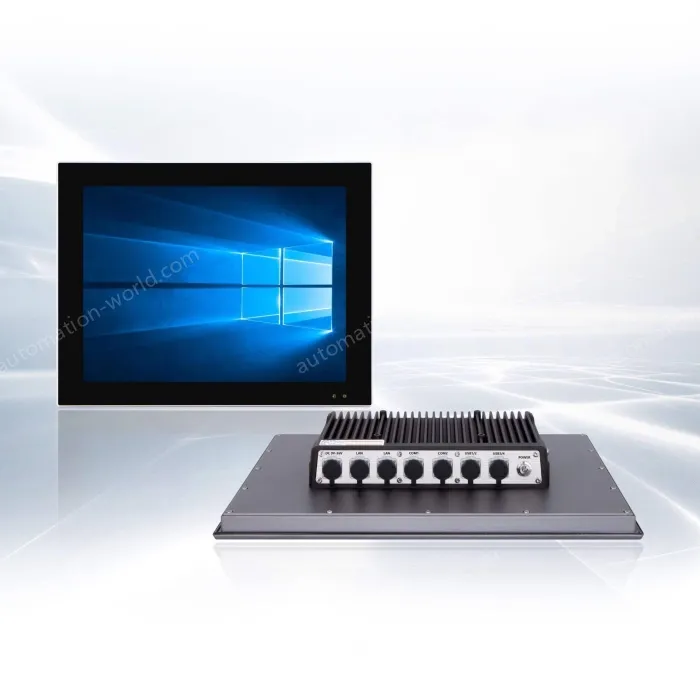

| LCD | Screen | 12.1 inch TFT LED | |
| Touch | Resolution | 1024*768 | |
| Screen | Brightness | 350cd/m2 | |
| Contrast | 800:1 | ||
| Largest Colorful | 16M | ||
| Type | Capacitive | Resistive | |
| Structural parameters | Light transmittance | More than 95% | More than 85% |
| Touch Life | 50 million times | 35 million times | |
| Response Time | <5ms | <5ms | |
| High temperature test | 85℃/1000hrs | ||
| Constant temperature and humidity test | 85℃/90%RH/1000hrs | ||
| Panel cabinet | The casing is molded by aluminum alloy mold | ||
| Box | Power | DC 12V（Aviation interface） | |
| Total Size | 299mm*239mm*63.5mm | ||
| Installation method | Flush mount/wall mount | ||
| Weight | 4kg | ||
| Operating temperature | -20～60℃ | ||
| Storage temperature | -30～80℃ | ||
| Correlated humidity | 10～95%@40℃ | ||
| Front panel protection | Whole machine IP66 waterproof | ||
