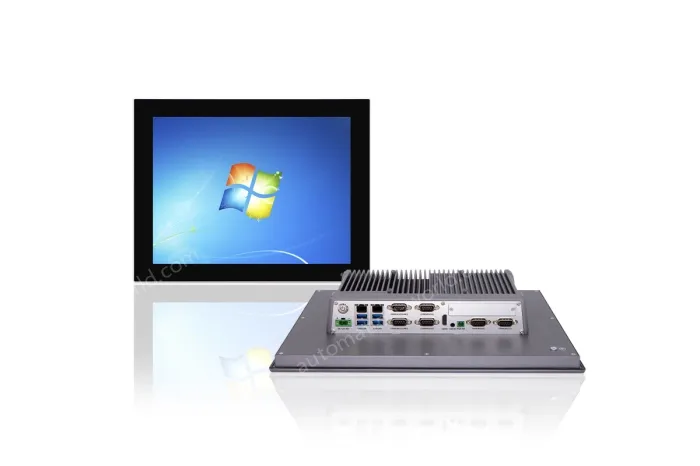

The new process mold is used to stamp the chassis, and the shell is sturdy and the appearance is beautiful
15" true color LCD screen, resolution 1024*768, backlight service life up to 50000 hours
The touch screen adopts a full-plane capacitive touch screen. The number of clicks can reach 50 million times 9~36V wide voltage DC power input to meet the power supply of industrial sites
Supports built-in 4G/WIFI and Bluetooth devices (optional)
The large-area aluminum fin active heat dissipation design ensures that the tablet can work uninterrupted in harsh industrial sites
| CPU | j1900 、 j6412 | ||
| i3-4010U、i3-7100U | |||
| i5-4260U、i5-6200U、i5-7200U、i5-8260U、i5-10210U | |||
| i7-4650U、i7-7500U、i7-10610U | |||
| RAM | 2*DDR III / 2*DDRIV | ||
| SSD | MSATA | 1*MSATA | |
| SATA | 1*SATA | ||
| Minipcie | 1*minipcie for 4G or wifi module | ||
| Show | HDMI | Support 1920*1200 | |
| USB | 4*USB 3.0 | ||
| I/O Interfaces | J1900:2*USB 3.0+2*USB 2.0 | ||
| Network Interfaces | 2*RJ-45 | ||
| Serial Port | 4*RS-232+2*RS-485/422 / 232 | ||
| Audio | RTLALC audio controller | ||
| LINE-out port | |||
| Expansion card slot | Multifunctional expansion cards | ||
| LCD | Screen | 15.0 inch TFT LED | |
| Touch | Resolution | 1024*768 | |
| Screen | Brightness | 350cd/m2 | |
| Contrast | 800:1 | ||
| Largest Colorful | 16M | ||
| Type | Capacitive | Resistive | |
| Structural parameters | Light transmittance | More than 95% | More than 85% |
| Touch Life | 50 million times | 35 million times | |
| Response Time | <5ms | <5ms | |
| High temperature test | 85℃/1000hrs | ||
| Constant temperature and humidity test | 85℃/90%RH/1000hrs | ||
| Panel cabinet | The casing is molded by aluminum alloy mold | ||
| Box | Power | DC 9-36V | |
| Total Size | 290mm*370mm*68mm | ||
| Installation method | Flush mount and wall mount （VESA） | ||
| Power | 20W | ||
| Operating temperature | -20～60℃ | ||
| Storage temperature | -30～80℃ | ||
| Correlated humidity | 10～95%@40℃ | ||
| Front panel protection | IP65 water and dust proof | ||
