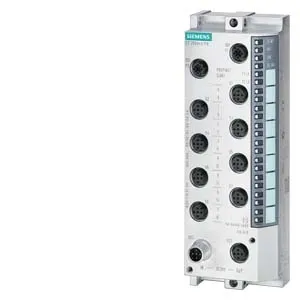

6ES7142-6BR00-0AB0 ET200ECO PN, 8 DO, DC24V/2A, 8XM12

SIMATIC DP, ET 200ECO PN, 8 DO 24V DC/2A; 8 X M12, DEGREE OF PROTECTION IP67

General information

Vendor identification (VendorID)

002AH

Device identifier (DeviceID)

0306H

Supply voltage

Load voltage 1L+

Rated value (DC)

24 V

permissible range, lower limit (DC)

20.4 V

permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

Load voltage 2L+

Rated value (DC)

24 V

permissible range, lower limit (DC)

20.4 V

permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

Input current

from load voltage 1L+ (unswitched voltage)

4 A

from load voltage 2L+, max.

4 A

Power losses

Power loss, typ.

5 W

Digital outputs

Number of digital outputs

In groups of

Short-circuit protection

Yes

Response threshold, typ.

2,8 A

Limitation of inductive shutdown voltage to

Typ. (L1+, L2+) -47 V

Controlling a digital input

Yes

Switching capacity of the outputs

on lamp load, max.

10 W

Output current

for signal "1" rated value

2 A

for signal "0" residual current, max.

1.5 mA

Parallel switching of 2 outputs

for increased power

for redundant control of a load

Yes

Switching frequency

with resistive load, max.

100 Hz

with inductive load, max.

0.5 Hz

on lamp load, max.

1 Hz

Aggregate current of outputs (per group)

all mounting positions

up to 60 °C, max.

3.9 A

Cable length

Cable length unshielded, max.

30 m

Interfaces

Transmission procedure

100BASE-TX

Transmission rate, max.

100 Mbit/s

Supports protocol for PROFINET IO

Number of PROFINET interfaces

Autocrossing

Yes

Automatic detection of transmission speed

Yes

Integrated switch

Yes

PROFINET IO Device

IRT with the option "high flexibility" supported

Yes

Prioritized startup

Yes

Protocols

Supports protocol for PROFINET IO

Yes

PROFINET CBA

Supports protocol for PROFIsafe

Protocols (Ethernet)

SNMP

Yes

DCP

Yes

LLDP

Yes

ping

Yes

ARP

Yes

Interrupts/diagnostics/status information

Status indicator

Yes; Green LED

Alarms

Diagnostic alarm

Yes

Diagnostic messages

Diagnostic functions

Yes

Diagnostic information readable

Yes

Monitoring the supply voltage

Yes; Green "ON" LED

Wire break in actuator cable

Yes

Short circuit

Yes

Group error

Yes; Red/yellow "SF/MT" LED

Galvanic isolation

between the load voltages

Yes

between load voltage and all other switching components

between Ethernet and electronics

Yes

Galvanic isolation digital outputs

between the channels

Permissible potential difference

between different circuits

75 VDC / 60 VAC

Isolation

tested with

24 V DC circuits

500 V

Interface

1500 V; According to IEEE 802.3

Degree and class of protection

IP65

Yes

IP66

Yes

IP67

Yes

Connection method

M12

Yes

Dimensions

Width

60 mm

Height

175 mm

Depth

49 mm

Weights

Weight (without packaging)

910 g

Status

Jun 16, 2014

6ES7142-6BR00-0AB0

SIMATIC DP, ET 200ECO PN, 8 DO 24 V DC/2 A; 8xM12, Degree of protection IP67
