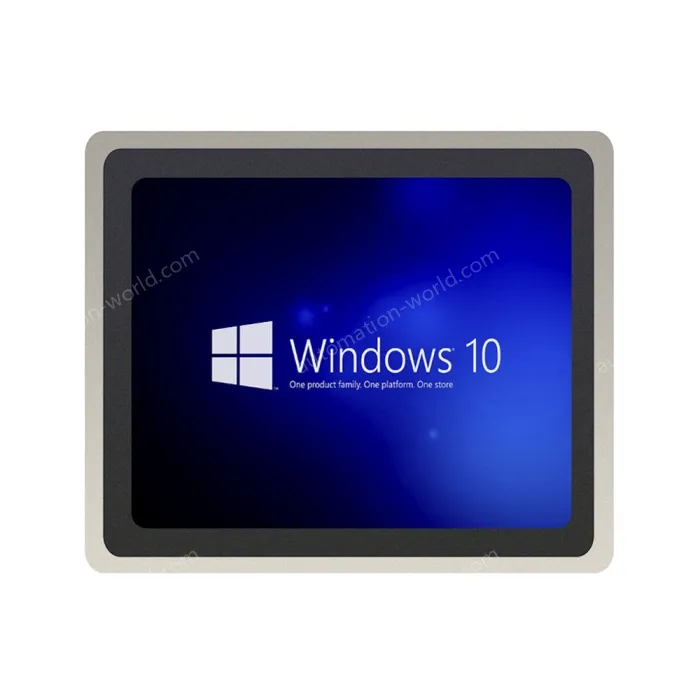

Industrial Tablet PCs PPC-8207- Intel-N5105 4GB+64GB

★★★★★4.91316 Reviews

Wholesale Price

Model: PPC-8207- Intel-N5105 4GB+64GB

Order No: PPC-8207- Intel-N5105 4GB+64GB

SKU: 1716372619465076498

Category: PPC Series

Brand: kernal

Size: 299.00mm, 237.50mm, 55.00mm

Weight: 2.43kg

Product Selection Engineer: Lixintao

Leading

Customer Service Guarantee

100% secure payment

Quality Guarantee

No Reason Returns

You May Also Like

Selling List

Description Reviews

PPC-8207 Series

1. 12.1" LCD screen with 1024*768 resolution, capacitive touch screen

2. The CPU is Intel®Celeron N5105

3. 1*DDR4, up to 16GB

4. Featured one-click Backup and One-click Recovery buttons, easy to operate

5. 1*2.5 inch SATA and 1*mSATA dual storage

6. 2*Intel KTI225V Gigabit Ethernet port

7. Abundant USB interfaces, 1*USB2.0, 4*USB3.0

8. Rich COM interface, 4*RS-232, 2*RS-485, 2*232/CAN can be reused

9. Built-in 1*MINIPCIE, can support 3G/4G or Wifi module

10. DC 12V output, short circuit, over-voltage, over-current protection

PPC-8207 Series

Specifications of PPC-8207 Series
System Hardware	Processor	Model	Kernel	Frequency	Highest turbo frequency	Maximum Memory	Cache	Power Consumption
		N5105	4C4T	2.0GHZ	2.9GHZ	16GB	4MB	10W
	Memory	DDR4 single-channel memory, maximum memory capacity of 16 GB
	Operating system	Support Win10 or above and Ubuntu 20.04 or above
	Graphics	Intel UHD Graphics HDMI up to 4096*2160
	BIOS	AMI BIOS, support boot display custom LOGO function
	Watch Dogs	Support 256 levels (0~255), programmable
	Power supply	DC IN 12V, standard with 12V/5A power adapter
	Startup mode	Power-on auto-power/button trigger boot (The default power-on auto-boot, the key-triggered boot mode can be set by BIOS.) ）
	Power switch	1*With light switch
	Display mode	1LVDS: The resolution is1024768
	COM1	1*3 wire RS-232, using 1 standard DB-9 seat
	DO	5*DO, the maximum output current of each channel is 500mA, and the output voltage DC is 9-30V (The current depends on the voltage at the power supply).
	DI	5*DI, NPN/PNP mode input DC 9V-30V
	COM2	1*RS-232, multiplexed with CAN1, is a green phoenix terminal
	COM3	1*RS-232, multiplexed with CAN2, is a green phoenix terminal
	COM4	1*RS-485, green phoenix terminal
	COM5	1*RS-232, green phoenix terminal
	COM6	1*RS-485, green phoenix terminal (multiplexed with light source).
	R-SW	1*Remote switch, green phoenix terminal with indicator light (5V).
	PWR	1*Power indicator
	DC OUT 12V	1*12V output
	LAN	2*Gigabit Ethernet port, using Intel KTI225V chip, support Wake-on-LAN speed: 10/100/1000Mbps
	USB	1 built-in USB2.0, 4*USB3.0
	HDMI	1*HDMI interface
Built Interface	SATA	1*SATA2.0 interface, support 2.5-inch hard disk
	MSATA	1*miniPCIe slot, support mSATA (capacity 64G/128G/256G/480G/512G...Optional).
	3G/4G/WIFI network	1*SMD MINIPCIE socket, support 3G/4G/WIFI(This is one of the three functions).
	USB	1*USB2.0, can be connected to the watchdog
	J4	1*Capacitive touch screen interface
	SIM	1*SIM small card clamshell card holder
Reliability	Operating temperature	0°C~60°C (excluding electronic disk).
	Storage temperature	-40°C~85°C (excluding electronic disk).
	Relative humidity	5%~95% non-condensing (excluding electronic disks).
	Vibration while working	System installation SSD/mSATA: 3 Grms, IEC 60068-2-64 random 5 ~ 500 Hz
	Shock while working	System installation SSD/mSATA: 30 G, IEC 60068-2-27
Structure	Installation:	Embedded installation by default, wall-mounted
	Embedded size	Refer to the mechanical dimensions of 1.4.1 below
	The weight of the whole machine	Approx. 2.43 kg (without accessories and packaging).
Certification	Relevant certificates	FCC ，CE ，EMC
Optional features:
ZJB-8207 specifications
Functions	DC IN 24V	1* External power supply interface of light source
	LIGHT
	TRIG1 TRIG2	2* Light source trigger
	CH1 CH2	4*Light source interface
	CH3 CH4
	LAN	1*Gigabit Ethernet port, using RTL8111H-CG chip, support Wake-on-LAN and speed:10/100/1000Mbps
	LINE OUT	1*Audio output
	MIC IN	1*Audio input
