Digital RS485 HART Pressure Transmitter

· Range:-1bar...0~0.1bar…1000bar · Accuracy: ±0.15%FS (Typ.) · RS485/HART Protocol Used For Hydrological Water Resources, Petroleum and Petrochemical Industry, Mechanical Engineering, Hydraulic and Pneumatic Control

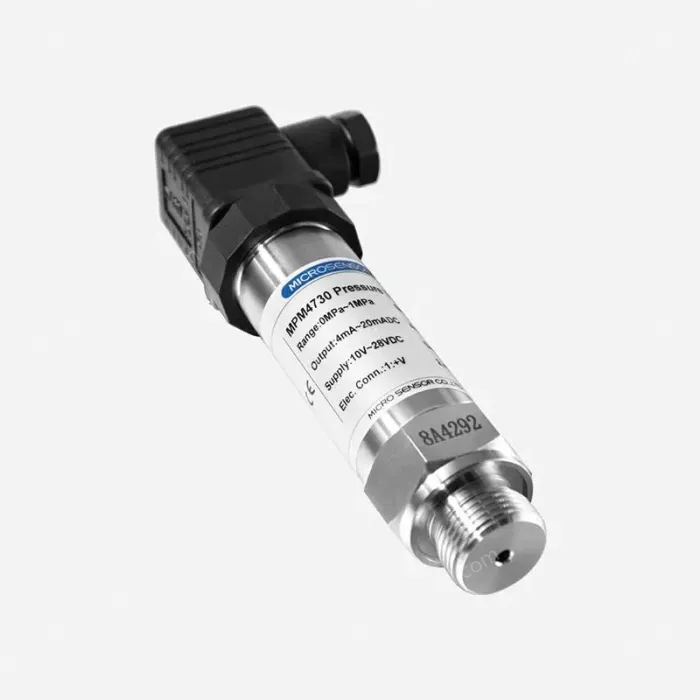

The MPM4730 digital RS485 HART pressure transmitter utilizes piezoresistive technology and specially designed electronics to provide high accuracy of 0.15%FS in a temperature range of -20~80℃. It offers both analog and digital signal outputs, including 4~20mA, RS485-Modbus, and HART protocol. By incorporating digital temperature compensation, non-linearity correction techniques, and advanced production methods, the MPM4730 pressure sensor ensures stability, accuracy, and a wider pressure range. This compact, lightweight, intelligent pressure transmitter is ideal for precise measurement of flow pressure. The MPM4730 pressure measurement instrument is suitable for process control, water treatment, chemical and mechanical equipment, offering versatile solutions for pressure monitoring needs.Feature • Digital Output with RS485 interface or HART® protocol • Capable of supporting network applications • Certificated with CE, RoHS, and CCSSpecifications • Range: -1bar…0mbar~100mbar…1000bar • Accuracy: ±0.1%FS, ±0.25%FS, ±0.5%FS • Overpressure: ≤2 times FS or 1100bar (minimum value is valid) • Long-term Stability: ±0.2%FS/year • Compensated Temperature: -10℃~70℃ • Application Temperature: -30℃~80℃ (B1 type, B3 type) -20℃~70℃ (B2 type, cable material: PE, PVC) -20℃~80℃ (B2 type, cable material: PUR) -20℃~60℃ (intrinsic safety type) • Storage Temperature: -40℃~85℃ -20℃~85℃ (B2 type)
