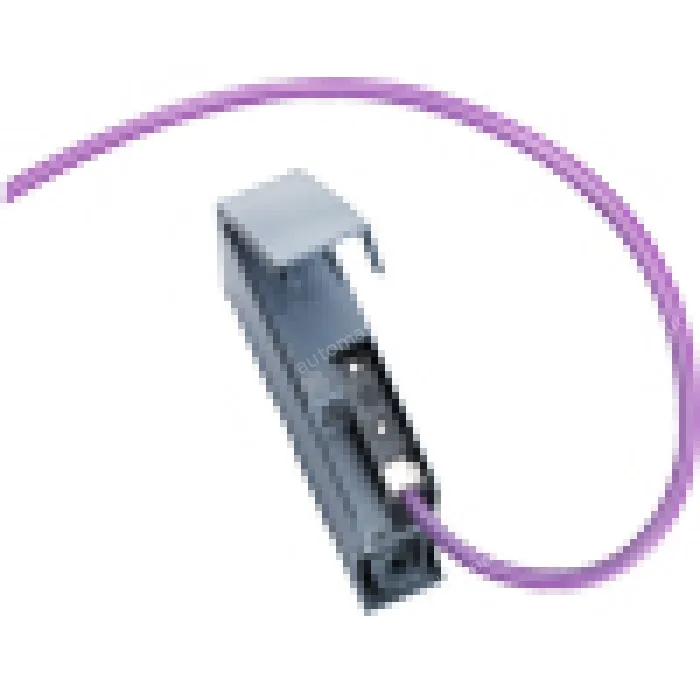

6GK7542-5DX00-0XE0 COMMUNICATION MODULE CM 1542-5

Artikelnummer

6GK7542-5DX00-0XE0

Product type designation		CM 1542-5
		COMMUNICATION MODULE CM 1542-5 FOR CONNECTING S7-1500 TO PROFIBUS DP AS DP-MASTER OR DP-SLAVE: S7- AND PG/OP- COMMUNICATION, CLOCK SYNCHRONISATION, DIAGNOSIS
Transmission rate
Transfer rate
● at the 1st interface / acc. to PROFIBUS		9.6 kbit/s ... 12 Mbit/s
Interfaces
Number of interfaces / acc. to Industrial Ethernet		0
Number of electrical connections
● at the 1st interface / acc. to PROFIBUS		1
Design of the electrical connection
● at the 1st interface / acc. to PROFIBUS		9-pin Sub-D socket (RS485)
Supply voltage, current consumption, power loss
Type of voltage / of the supply voltage		DC
Supply voltage / 1 / from backplane bus		15 V
Relative symmetrical tolerance / for DC
● at 15 V		3 %
Consumed current
● from backplane bus / for DC / at 15 V / typical		0.2 A
Active power loss		3 W
Permitted ambient conditions
Ambient temperature
● for vertical installation / during operation		0 ... 40 °C
● for horizontally arranged busbars / during operation		0 ... 60 °C
● during storage		-40 ... +70 °C
● during transport		-40 ... +70 °C
Relative humidity / at 25 °C / without condensation / during operation / maximum		95 %
Protection class IP		IP20
Design, dimensions and weight
Module format		Compact module S7-1500 single width
Width		35 mm
Height		142 mm
Depth		129 mm
Net weight		0.4 kg
Mounting type
● S7-1500 rail mounting		Yes
Product properties, functions, components / general
Number of units
● per CPU / maximum		8
● Note		depending on CPU type
Performance data
Performance data / PROFIBUS DP
Service / as DP master
● DPV1		Yes
Number of DP slaves / on DP master / usable		125
Amount of data
● of the address area of the inputs / as DP master / total		8192 byte
● of the address area of the outputs / as DP master / total		8192 byte
● of the address area of the inputs / per DP slave		244 byte
● of the address area of the outputs / per DP slave		244 byte
Service / as DP slave
● DPV0		Yes
● DPV1		Yes
Amount of data
● of the address area of the inputs / as DP slave / total		240 byte
● of the address area of the outputs / as DP slave / total		240 byte
Performance data / S7 communication
Number of possible connections / for S7 communication
● maximum		40
● Note		depending on the system upper limit
Performance data / multi-protocol mode
Number of active connections / with multi-protocol mode		40
Performance data / telecontrol
Protocol / is supported
● TCP/IP		No
Product functions / management, configuration
Configuration software
● required		STEP 7 Professional V12 (TIA Portal) or higher
Identification & maintenance function
● I&M0 - device-specific information		Yes
● I&M1 – higher-level designation/location designation		Yes
Product functions / Diagnosis
Product function / Web-based diagnostics		Yes; yes, via S7-1500 CPU
Product functions / Time
Product function / pass on time synchronization		Yes
Further Information / Internet Links
Internet-Link
● to website: Selector SIMATIC NET SELECTION TOOL		http://www.siemens.com/snst
● to website: Industrial communication		http://www.siemens.com/simatic-net
● to website: Information and Download Center		http://www.siemens.com/automation/net/catalog
● to website: Image database		http://automation.siemens.com/bilddb
● to website: CAx Download Manager		http://www.siemens.com/cax
● to website: Industry Online Support		http://support.automation.siemens.com
last modified:		03.11.2014
Date 04.11.2014	Changes preserved © Copyright Siemens AG 2014
