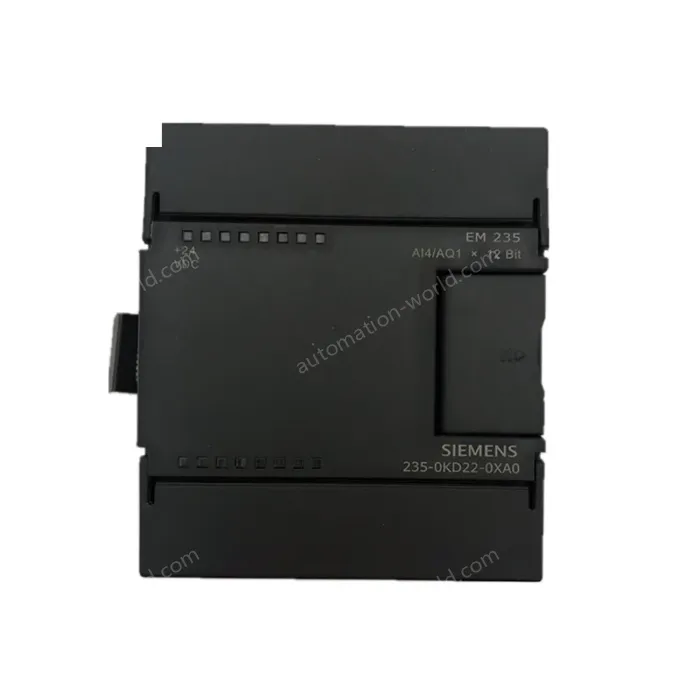

Model | EM235 4 inputs/1 outputs ×12bits |
Product Description | 4AI,1AO; 12 bits resolution voltage output; 11 bits resolution current output |
Input Feature |
|
From bus current consumption | 30mA |
From L+ current consumption | 60mA |
Power loss | 2W |
Number of analog Input | 4 |
Signal input type | Differential |
Maximum input voltage | 30V |
Maximum input current | 32mA |
Voltange input range: Unipolar | 0~50mV, 0~100mV,0~500mV,0~1V,0~5V,0~10V |
Voltange input range: Bipolar | ±1V, ±2.5V, ±5V, ±10V ±25mV, ±50mV, ±100mV, ±250mV, ±500mV, |
current input range | 0~20mA, |
Resolution | 12bits |
Bipolar,full-scale range | 0~32,000 |
Unipolar, full-scale range | -32，000~+32，000 |
Analog to digital conversion time | <250µs |
Output Feature |
|
Number of analog Input | 1 |
Input voltage range | -10~+10V |
Input current range | 0~20mA |
Load inpedance |
|
·for voltage outputs | Min:5KΩ |
·for current outputs | Max:0.5KΩ |
Resolution | 12 bits voltage output; 11 bits current output |
Data word format |
|
·Displayable:voltage output | -32，000~+32，000 |
·Displayable:current output | 0~32，000 |
Basic error | ±0.5% of full range |
Dimensions(W x H x D)(mm) | 71.2×80×62 |
Order Number | 235-0KD22-OXAO |
