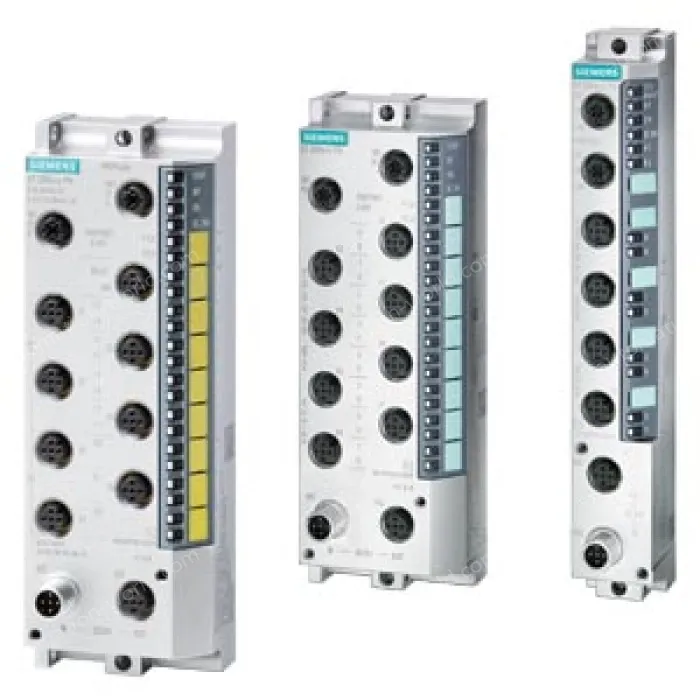

6ES7141-6BF00-0AB0 ET200ECO PN, 8DI, DC24V, 4XM12

Artikelnummer

6ES7141-6BF00-0AB0


General information
Vendor identification (VendorID)		002AH
Device identifier (DeviceID)		0306H
Supply voltage
24 V DC		Yes
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Reverse polarity protection		Yes
Input current
Current consumption, typ.		100 mA
Encoder supply
Number of outputs		4
Output current
● Output current, rated value		100 mA; per output
24 V encoder supply
● Short-circuit protection		Yes
Power loss
Power loss, typ.		5.5 W
Digital inputs
Number of digital inputs		8
● in groups of		2
Input characteristic curve in accordance with IEC 61131, type 3		Yes
Number of simultaneously controllable inputs
all mounting positions
— up to 60 °C, max.		8
Input voltage
● Type of input voltage		DC
● Rated value, DC		24 V
● for signal "0"		-3 to +5V
● for signal "1"		+11 to +30 V
Input current
● for signal "0", max. (permissible quiescent current)		1.5 mA
● for signal "1", typ.		7 mA
Input delay (for rated value of input voltage)
for standard inputs
— at "0" to "1", max.		typically 3 ms
— at "1" to "0", max.		typically 3 ms
Cable length
● Cable length unshielded, max.		30 m
Interfaces
Transmission procedure		100BASE-TX
Transmission rate, max.		100 Mbit/s
PROFINET IO
● Number of PROFINET interfaces		1
● Autocrossing		Yes
● automatic detection of transmission rate		Yes
● integrated switch		Yes
PROFINET IO Device
— IRT with the option "high flexibility", supported		Yes
— Prioritized startup		Yes
Protocols
PROFINET IO		Yes
PROFINET CBA		No
PROFIsafe		No
Protocols (Ethernet)
● SNMP		Yes
● DCP		Yes
● LLDP		Yes
● ping		Yes
● ARP		Yes
Interrupts/diagnostics/status information
Status indicator		Yes; Green LED
Alarms
● Diagnostic alarm		Yes
Diagnostic messages
● Diagnostic functions		Yes
● Diagnostic information readable		Yes
● Monitoring the supply voltage		Yes; Green "ON" LED
● Wire-break in signal transmitter cable		Yes
● Short-circuit encoder supply		Yes; Per channel group
● Group error		Yes; Red/yellow "SF/MT" LED
Galvanic isolation
between the load voltages		Yes
between load voltage and all other switching components		No
between Ethernet and electronics		Yes
Galvanic isolation digital inputs
● between the channels		No
Permissible potential difference
between different circuits		75 VDC / 60 VAC
Isolation
tested with
● 24 V DC circuits		500 V
● Interface		1 500 V; According to IEEE 802.3
Degree and class of protection
IP65		Yes
IP66		Yes
IP67		Yes
Connection method
M12		Yes
Dimensions
Width		30 mm
Height		200 mm
Depth		49 mm
Weights
Weight (without packaging)		550 g
last modified:		21.08.2014

6ES7141-6BF00-0AB0

SIMATIC DP, ET 200ECO PN, 8 DI 24 V DC; 4xM12, Duplicate assignment, Degree of protection IP67
