W 623-2Z

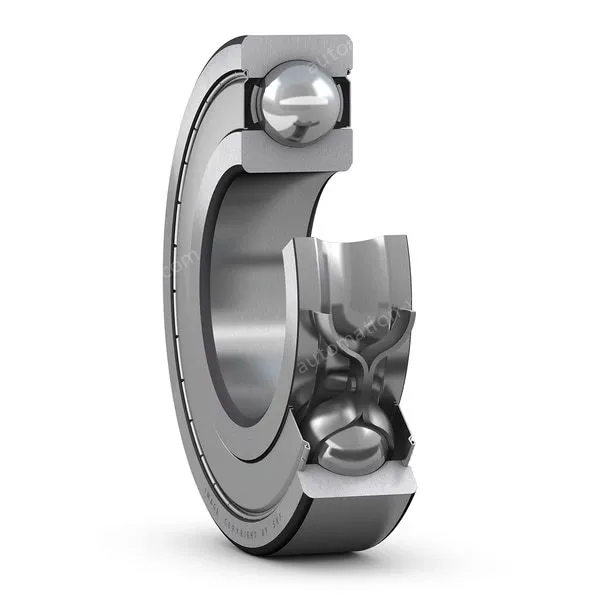

Stainless steel deep groove ball bearing with integral sealing

W 623-2Z

Stainless steel single row deep groove ball bearing with seals or shields on both sides, provide greater chemical and corrosion resistance. As with deep groove ball bearings generally, they are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

W 623-2Z

Greater chemical and corrosion resistance
Integral sealing prolongs bearing service life
Typical benefits of single row deep groove ball bearings

W 623-2Z

Overview

Display in:MetricImperial

Dimensions

Bore diameter	0.118 in
Outside diameter	0.394 in
Width	0.157 in

Performance

Basic dynamic load rating	80 lbf
Basic static load rating	25 lbf
Reference speed	140 000 r/min
Limiting speed	70 000 r/min

Properties

Filling slots	Without
Number of rows	1
Locating feature, bearing outer ring	None
Bore type	Cylindrical
Cage	Sheet metal
Matched arrangement	No
Radial internal clearance	CN
Material, bearing	Stainless steel
Coating	Without
Sealing	Shield on both sides
Sealing type	Non-contact
Lubricant	Grease
Relubrication feature	Without
