TP-LINK's newly developed "Cloud Switching Series" full gigabit cloud management switches provide more efficient, simple, secure, and easy-to-use remote management methods, support intelligent deployment, automatic configuration networking, abnormal alarms and other functions, and can be easily used by novices without the need for professional IT operation and maintenance personnel; Basic network management functions, such as bandwidth control, are easy to manage and maintain, and are suitable for campus, hotel, and enterprise campus network access application scenarios.

• 5 x 10/100/1000Base-T RJ45 ports
• Support remote management of business cloud APP and web
• It supports intelligent deployment, abnormal alarms, and fast troubleshooting
• Supports 802.1Q VLAN, QoS, and bandwidth control
• Supports port traffic statistics, port monitoring, port aggregation, and port isolation
• Supports cable detection and loopback protection
• It supports three modes: cloud management, VLAN isolation, and standard switching

Full Gigabit ports

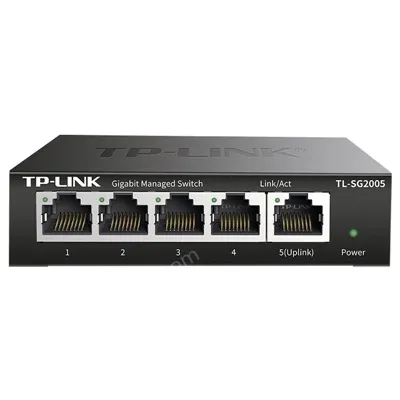

• The TL-SG2005 provides five 10/100/1000Mbps RJ45 ports.

• All ports have gigabit wire-speed forwarding capability to meet the needs of different users.

It supports remote management on the APP side and the web side, and the whole process of operation is portable and encrypted

• Remote management through the TP-LINK business cloud APP, only one mobile phone is needed, no matter where you are, you can complete a variety of operations such as setup, management, troubleshooting, etc., which is easy and convenient.

• It provides TP-LINK commercial network cloud platform, and can also manage devices through the web client.

Scan the code to add devices with one click and automatically configure the networking

• Simplify the steps of adding devices, you only need to scan the QR code on the fuselage to add the switch, and automatically identify all devices connected to the switch.

• Scan the QR code once to achieve fast and intelligent start. The identified topology is displayed in a graphical way, which is clear and intuitive, and easy to understand.

View port status in real time and provide timely alarms for exceptions

• Real-time monitoring of the working status of each port and graphical display, simple interaction, clear at a glance.

• Timely alarms are given for abnormal status, and fault location is highlighted and visible at a glance, reducing the difficulty of troubleshooting and greatly improving O&M efficiency.

Trunk ports converge, the uplink rate is doubled, and loops are automatically detected and eliminated

• Port aggregation is supported, which can provide higher uplink rates.

• Intelligent loop protection, which automatically detects the network topology and automatically repairs the loop immediately after it is found, effectively preventing network congestion and faults caused by network loops.

Simple and practical network management functions

• IEEE 802.1Q VLANs are supported, allowing users to flexibly divide VLANs according to their needs.

• It supports QoS and supports three priority modes: port-based, 802.1P-based, and DSCP-based, to optimize bandwidth configuration.

• Port monitoring is supported, and a copy of the data packets of the monitored port is copied to the monitored port to implement network monitoring.

• Port aggregation is supported, which effectively increases link bandwidth, implements link backup, and improves link reliability. The device can be managed and maintained through the web interface.

One-click to switch working modes

• Cloud management mode: The switch supports network management functions such as VLAN, port aggregation, and port monitoring, and can be managed and maintained through the commercial cloud app, commercial network cloud platform, and local interface.

• VLAN isolation mode: The switch does not support the NMS function, and some ports are isolated from each other.

• Standard switching mode: The switch does not support the NMS function, and all ports can communicate freely.
