ME2L-203-76U3C

Ship to Stock in: Warehouse

ME2L-203-76U3C(1920×1080,USB3.0,Color)

★★★★★4.94818 Reviews

Wholesale Price

Model: ME2L-203-76U3C

Order No: ME2L-203-76U3C

SKU: 1721126035764231165

Category: Daheng

Brand: Daheng

Size: 29.00mm, 29.00mm, 29.00mm

Weight: 47.00g

Product Selection Engineer: Zhangyuchong

Leading

Customer Service Guarantee

100% secure payment

Quality Guarantee

No Reason Returns

You May Also Like

Selling List

Description Reviews

ME2L-203-76U3C

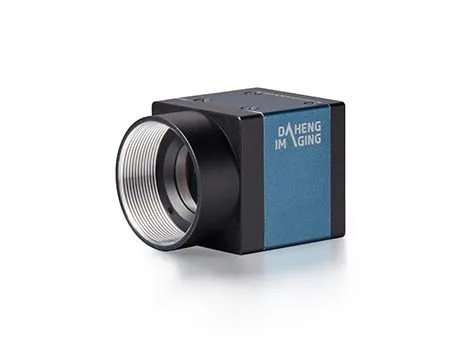

Mercury II Lite (ME2L-U3) series digital camera is an area scan industrial digital camera independently developed by Daheng Imaging, with low cost, high performance and high reliability, with an external size of only 29mm(W).× 29mm(H)×28.1mm(L), it will be a good choice for users who have strict requirements on camera cost and size. ME2L-203-76U3C adopts progressive exposure CMOS sensor, transmits image data through USB3.0 data interface, integrates I/O (GPIO) interface, provides cable locking device, can work stably in various harsh environments, is a highly reliable and cost-effective industrial digital camera product. ME2L-203-76U3C has the characteristics of high definition, low noise, compact design, easy installation and use, and is suitable for industrial testing, medical treatment, scientific research, education, security and other fields.

ME2L-203-76U3C

Support multi-frame grayscale control function
Custom ROI is supported, and the frame rate can be increased by reducing the resolution
Programmable settings for gain, exposure time, and white balance
Auto Gain, Auto Exposure, Auto White Balance
It supports the ambient light preset function, and provides an Off mode and four light modes that specify common color temperatures
Three working modes: continuous acquisition/soft trigger acquisition/external trigger acquisition
Outputable image data format: Bayer RG8 / Bayer RG10
Parameter groups are supported

Horizontal and vertical mirroring functions are supported
A 16KB user data area is provided to save algorithm coefficients, parameter configurations, etc
Rugged all-metal housing and cable locking
It supports GenICam™ and USB3 Vision®, and can be directly connected to third-party software such as HALCON, MERLIC, LabVIEW, etc
CE and RoHS compliant and certified
The driver is optimized for 32bit / 64bit Windows and supports operating systems and architectures such as Linux, Android, ARMv7 and ARMv8
Free SDK and abundant source code for secondary development instances

ME2L-203-76U3C

Model	ME2L-203-76U3C
Brand	Daheng image
Resolution	1920×1080
Frame rate (fps)	76
Sensor	1/2.8" Rolling shutter CMOS
Cell size	2.9μm
Pixel depth	8 bit，10 bit
Data interface	USB3.0
Lens mount	C，CS
Spectrum	Colored
Image data format	Bayer RG8，Bayer RG10
Signal-to-noise ratio	41.53 db
Rated power	< 2.7 W @ 5 VDC
Power supply requirements	5 VDC
Operating temperature	0°C ~ +45°C
Storage temperature	-20°C ~ +70°C
Operating humidity	10% ~ 80%
Mechanical Dimensions (W×H×L)	29 mm × 29 mm × 29 mm (without C-mount length)
Weight	47 g
Certifications & Standards	CE，rohs，USB3 Vision，genicam
