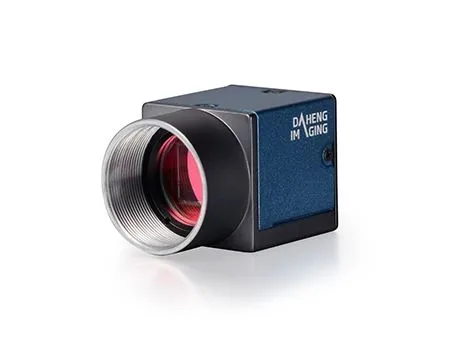

MER2-503-23GM

Ship to Stock in: Warehouse

MER2-503-23GM(2448×2048,GigE,Mono)

★★★★★4.91879 Reviews

Wholesale Price

Model: MER2-503-23GM

Order No: MER2-503-23GM

SKU: 1721126035764103943

Category: Industrial digital camera

Brand: Daheng

Size: 29.00mm, 29.00mm, 29.00mm

Weight: 62.00g

Product Selection Engineer: Zhangyuchong

Leading

Customer Service Guarantee

100% secure payment

Quality Guarantee

No Reason Returns

You May Also Like

Selling List

Description Reviews

MER2-503-23GM

Mercury II MER2-G series is a new generation of industrial area scan digital cameras independently developed by Daheng Imaging, which continues the advantages of Mercury MER-G series cameras such as compact and rugged structure, and improves the built-in image processing (ISP) algorithm, providing a variety of acquisition methods, which can meet the requirements of various vision applications, and will be a good choice for users with demanding camera size and performance requirements. The MER2-503-23GM adopts the Sony IMX264 CMOS sensor with global exposure, transmits image data through the GigE data interface, integrates I/O (GPIO) interface, and provides a cable locking device, which can work stably in various harsh environments, and is a high-reliability industrial digital camera product. The MER2-503-23GM has the characteristics of excellent performance, compact design, easy installation and use, and is suitable for industrial testing, medical treatment, scientific research, education, and security.

MER2-503-23GM

Custom ROI is supported, and the frame rate can be increased by reducing the resolution
Programmable settings for gain and exposure time
Auto gain, auto exposure
Four working modes: single frame acquisition, continuous acquisition, soft trigger acquisition, external trigger acquisition
Trigger Type: Frame Start / Frame Burst Start
Two exposure time modes: Standard Exposure Mode/ Minimal Exposure Mode
Support noise reduction function
Supports pixel sampling (Decimation), Binning, digital shift, and black level functions
Horizontal and vertical mirroring functions are supported
Gamma and sharpening are supported to optimize the brightness and edge sharpness of captured images

Lookup tables, parameter groups, counters, and timer functions are supported
The parameter range limit can be removed, and the range value of parameters such as exposure and gain can be expanded
You can adjust the packet length, packet interval, and reserved bandwidth to optimize the simultaneous collection and transmission of multiple machines
A 16KB user data area is provided to save algorithm coefficients and parameter configurations
Supports GenICam™ and GigE Vision^®, and can directly connect to third-party software such as HALCON, MERLIC, LabVIEW, etc
The driver is optimized for 32bit / 64bit Windows and supports operating systems and architectures such as Linux, ARMv7, ARMv8 and Mac OS
Free SDK and abundant source code for secondary development instances

MER2-503-23GM

Model	MER2-503-23GM
Brand	Daheng image
Resolution	2448×2048
Frame rate (fps)	23.5
Sensor manufacturers	Sony
Sensor	2/3" IMX264 Global shutter CMOS
Cell size	3.45μm
Pixel depth	8 bit，12 bit
Data interface	Gige
Lens mount	C，CS
Spectrum	Black and white
Image data format	Mono8，Mono12
Signal-to-noise ratio	40.64 db
Rated power	< 3 W @ 24 VDC
Power supply requirements	12 ~ 24 VDC
Operating temperature	0°C ~ +45°C
Storage temperature	-20°C ~ +70°C
Operating humidity	10% ~ 80%
Mechanical Dimensions (W×H×L)	29 mm × 29 mm × 29 mm (without C-mount length)
Weight	62 g
Certifications & Standards	CE，rohs，FCC, gige Vision，genicam
